Abstract

In this article I will present some interesting hackings in Height-Slang [0] [1]. While mkheightmap is meant to be a heightmap creation tool, the creations presented in this article are not necessarily usable as such. Think of this article as a show-off of Height-Slang and mkheightmap.

Programs and Example-Outputs

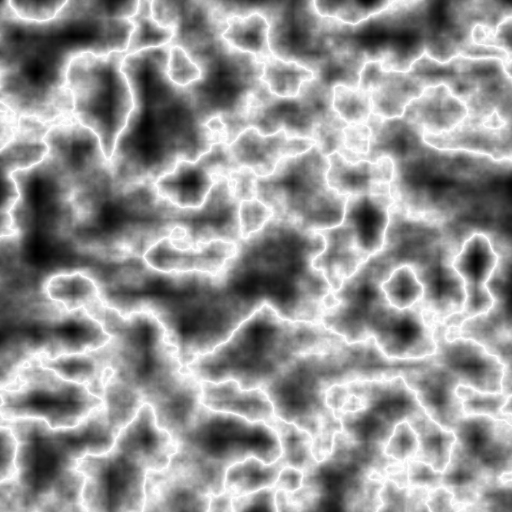

edges

(^  (-  1
        (abs ([2 LayeredNoise
                 frequency(15)
                 layercount(8)
                 persistence((* 0.4 (-1 (abs x))))
              ] x y)))
    3)

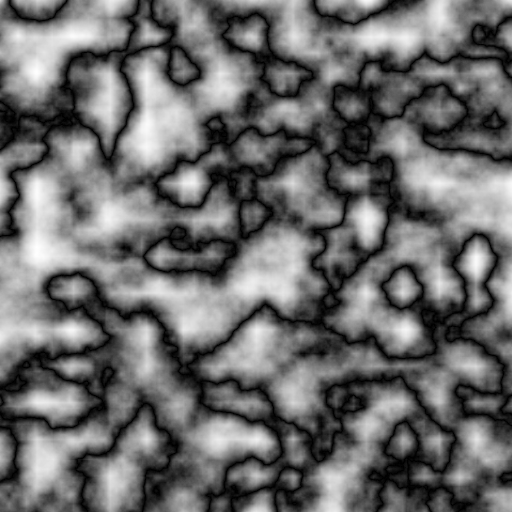

rivers

(-  1
    (^  (-  1
            (abs ([2 LayeredNoise
                     frequency(15)
                     layercount(8)
                     persistence((* 0.4 (-1 (abs x))))
                  ] x y)))
        3))


interesting

(lerp (sin (* 10 x))
      (sin (* 10 y))
      (^ (- 1
            (abs ([2 LayeredNoise
                     frequency(15)
                     layercount(8)
                     persistence((* 0.4 (-1 (abs x))))
                  ] x y)))
          3))

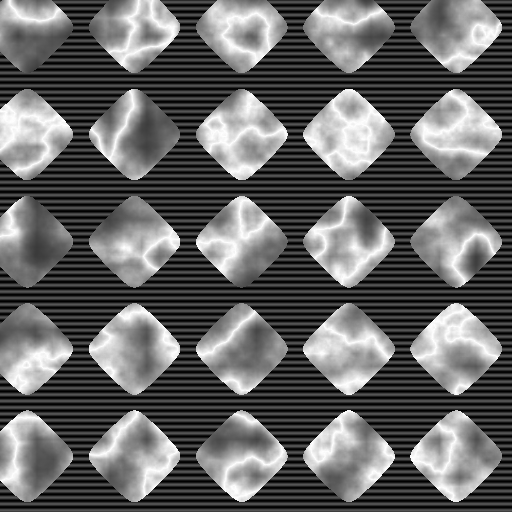

funky-noise

(? (> 0.1
      (+ (sin (* 30 x))
         (sin (* 30 y))))
   (* 0.2
      (sin (* y 500)))
   (^ (- 1
         (abs ([2 LayeredNoise
                  frequency(15)
                  layercount(8)
                  persistence((* 0.4 (-1 (abs x))))
               ] x y)))
      3))

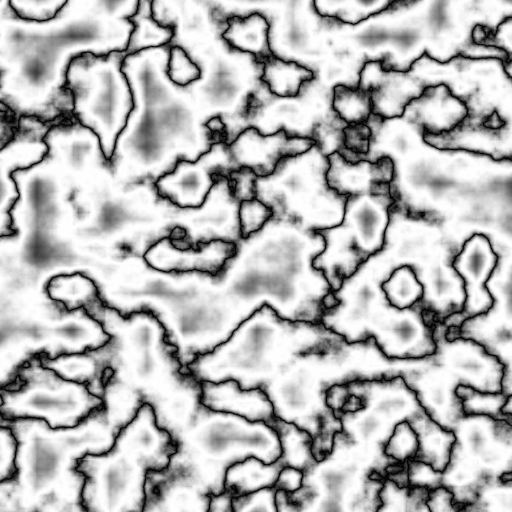

a-bit-like-marbles


(sin (* 3.141
        (^ (- 1
              (abs ([2 LayeredNoise
                       frequency(15)
                       layercount(8)
                       persistence((* 0.4 (-1 (abs x))))
                    ] x y)))
           3)))

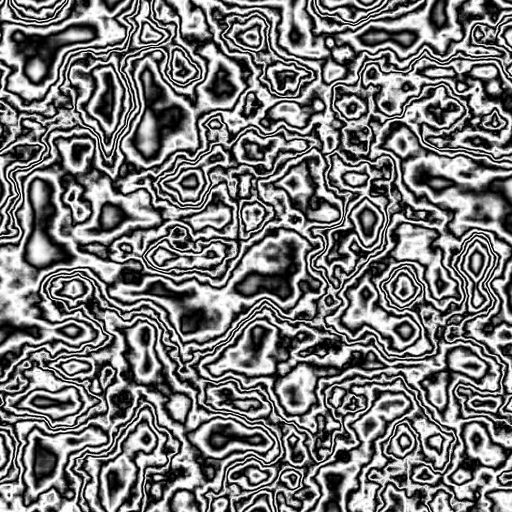

sketchy


(sin (* 20 (^ (- 1
                 (abs ([2 LayeredNoise
                          frequency(15)
                          layercount(8)
                          persistence((* 0.4 (-1 (abs x))))
                       ] x y)))
              3)))

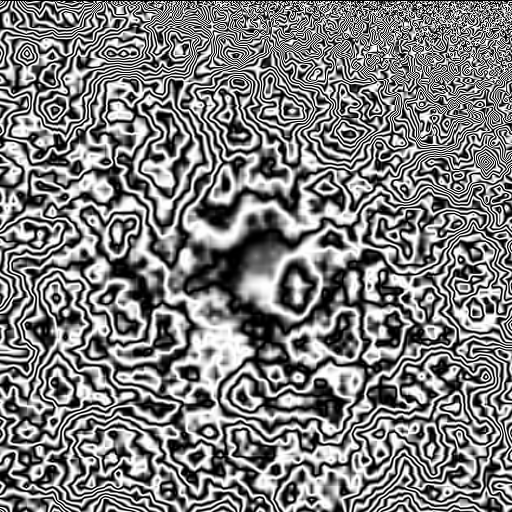

i-can-no-more


(sin (* (/ (* 100
              ([2 LayeredNoise frequency(10)] x y))
           (^ y x))
        (sqrt (+ (^ (- x 0.5) 2)
                 (^ (- y 0.5) 2)))))

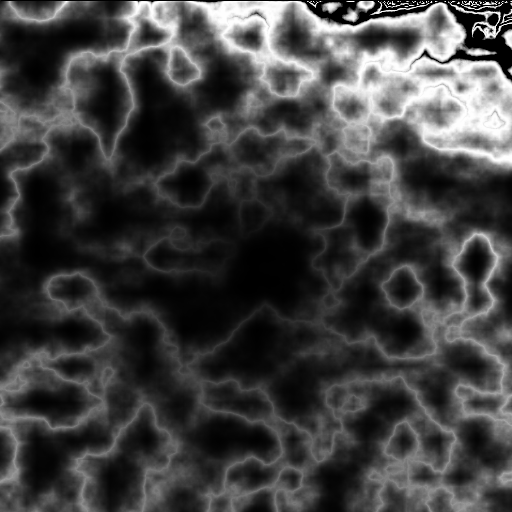

i-can-no-more-2


(sin (* (/ (* (^ (- 1
                    (abs ([2 LayeredNoise
                             frequency(15)
                             layercount(8)
                             persistence((* 0.4 (-1 (abs x))))
                          ] x y)))
                 3)
              (^ (- 1
                    (abs ([2 LayeredNoise
                             frequency(15)
                             layercount(8)
                             persistence((* 0.4 (-1 (abs x))))
                          ] x y)))
                 3))
           (^ y x))
        (sqrt (+ (^ (- x 0.5) 2)
                 (^ (- y 0.5) 2)))))

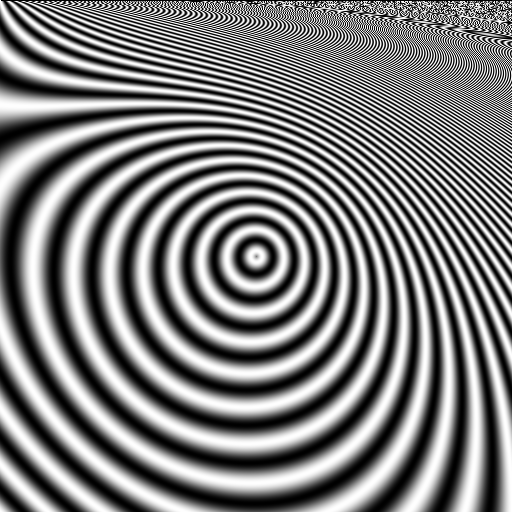

weird


(sin (* (/ 100 (^ y x))
        (sqrt (+ (^ (- x 0.5) 2)
                 (^ (- y 0.5) 2)))))

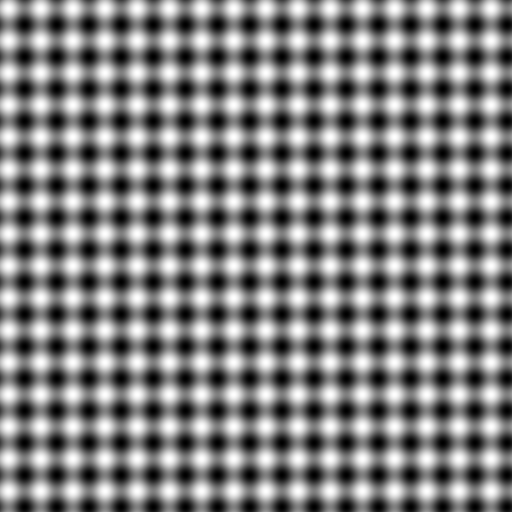

sincos-checkers


(+ (sin (* 100 x))
   (cos (* 100 y)))

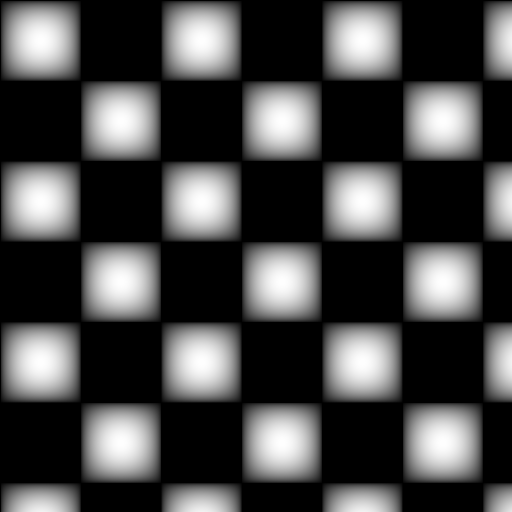

another-checkers


(sqrt (* (sin (* 20 x))
         (cos (* 20 y))))

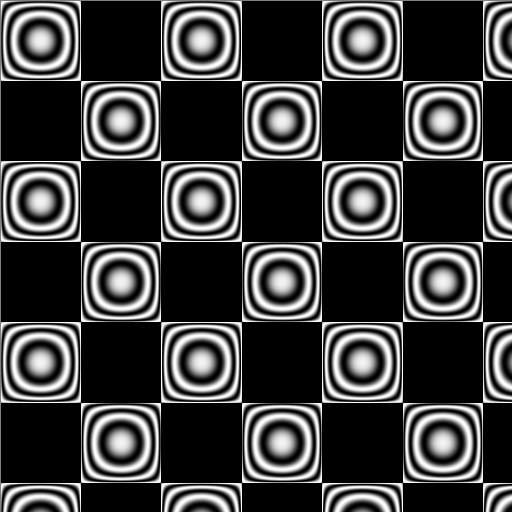

funky

(sin (* 20
        (sqrt (* (sin (* 20 x))
                 (cos (* 20 y))))))

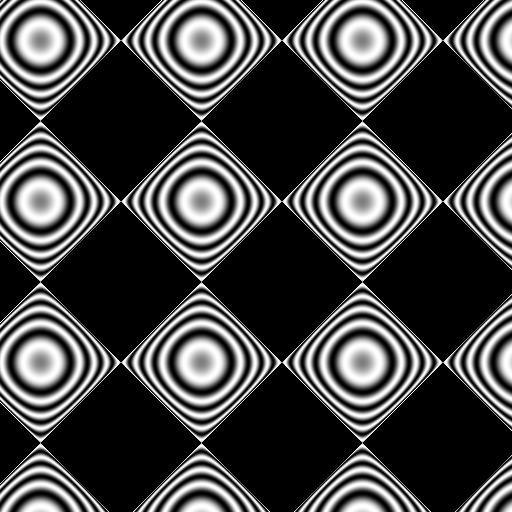

this-shalt-be-a-heightmap-questionmark


(sin (* 20
        (sqrt (+ (sin (* 20 x))
                 (cos (* 20 y))))))

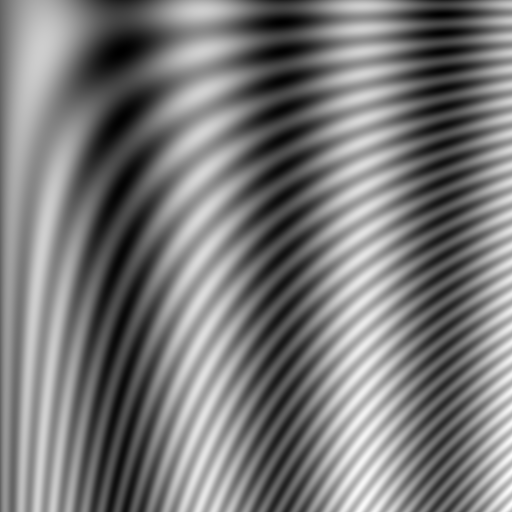

interf-0


(+ (* 2
      (+ (cos (* y x))
         (sin (* x 20))))
    (sin (* 200
            (* x y))))

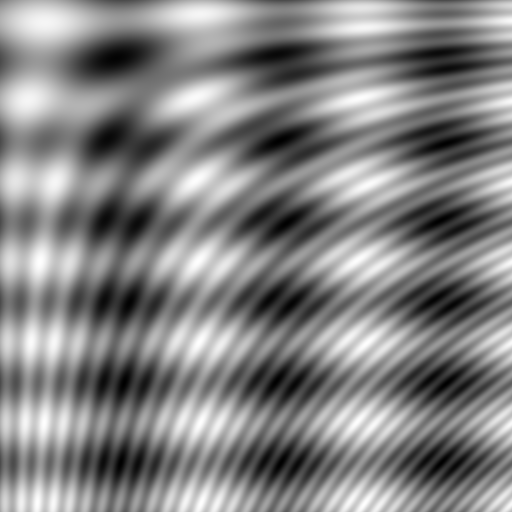

interf-1


(+ (* 2
      (+ (cos (* y 40))
         (sin (* x 20))))
   (sin (* 200
           (* x y))))

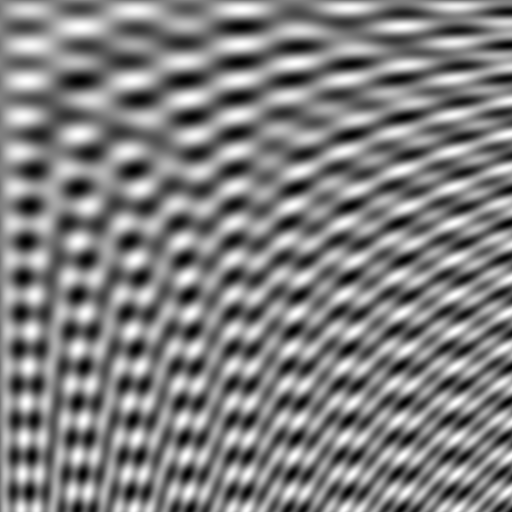

interf-2

(+ (* 2
      (* (cos (* y 90))
         (sin (* x 30))))
    (sin (* 200
            (* x y))))
